● If the technician needs to use medical electronic devices, for example, the automatic electronic defibrillator, then he can not operate in the vehicle, otherwise, the function of the device may be effected by the strong magnetic components.

Regular Charge Precaution

Warning:

● If the technician uses medical devices such as cardiac pacemaker, cardiovertor, cardiac defibrillator, etc., the function of the devices must be checked before starting a normal operation.

● In a regular charging operation, electronic medical devices may be effected by the electromagnetic waves. Technicians using a medical device, such as cardiac pacemaker, cardiovertor, cardiac defibrillator , etc., should not enter the passenger cabin(including baggage cabin).

Communication equipment operation precautions

● Technicians using a electronic medical device, such as cardiac pacemaker, cardiovertor, cardiac defibrillator, etc, should keep a safe distance from the communication equipment.

● The electromagnetic wave of the remote intelligent terminal may effect the function of medical electronic devices such as cardiac pacemaker,cardioverter, cardiac defibrillator, , etc.

●The electromagnetic wave of the remote intelligent terminal may effect the function of devices when technicians using a electronic medical device, such as cardiac pacemaker, cardiovertor, cardiac defibrillator, etc. The possible effect of remote intelligent terminal on electronic medical device must be inspected by the manufacture of the electronic medical device .

Key points inspection before maintenance

The high-voltage system may automatically operate. Please confirm the remote air conditioning and fixed-time charging haven’t been set before the maintenance.

Attention：

● If the remote air conditioning and fixed time charging have been set, the high pressure system will automatically operate even if the switch is in closed state.

Precautions concerning the auxiliary restraint system "airbag" and "seat belt pretension"

Auxiliary restraint system “airbag” and “seat belt pretension” can be used together with the front seat safety belt which can reduce the hurt on the driver and front row passenger in a collision Auxiliary restraint system includes safety belt and airbags for driver and co-driver. Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this Service Manual.

Warning:

In order to avoid accidents, please obey the following instructions:

In order to avoid failure of the auxiliary restraint system which may increase the possibility of casualty in an collision All the reparation can only be operated by the JAC authorized distributors.

Nonstandard reparation of the auxiliary restraint system, including nonstandard disassembly and assembly, may accidentally activate the auxiliary restraint system and cause personal injury. Disassembly of the airbag module refers to the chapter of “airbag system”.

● Do not use any electrical test devices to test any circuit of the auxiliary restraint system except operations described in the service manual. The wire harness and connectors of the auxiliary restraint system should use yellow color or orange color.

Precautions when using power tools (air or electric) and hammers.

● When the power switch is at ON position, do not use power tools or the hammer to operate on the sensor accessory areas which are close to the airbag diagnose sensor and other sensors of the airbag system. Violent vibrations may activate these sensors, ignite the airbag and cause serious damage.

● When using a power tool or a hammer, rotate the key to LOCK gear, plug off the negative terminal of the 12V lead-acid storage battery, wait for at least one minute, then start the maintenance.

Precaution for Removing 12V Battery

When removing the 12V battery, turn the power switch to “ON” at first, and then to “OFF”.

Note:

● Even if the key is at the “LOCK” gear, the automatically charging function of 12V battery may still launch.

● After the key rotates from “ON” to “LOCK”, the the automatically charging function of 12V battery can not launch.

System description

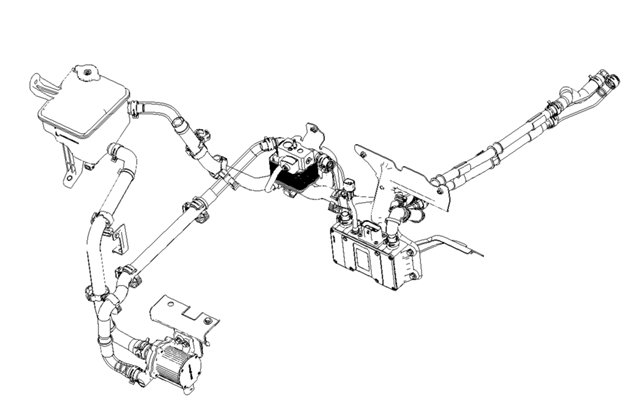

Components layout

$= 1 \* GB3 \* MERGEFORMAT ①$

$EQ \o\ac(○,16) = 2 \* GB3 \* MERGEFORMAT ②$ $= 10 \* GB3 \* MERGEFORMAT ⑩$ $= 9 \* GB3 \* MERGEFORMAT ⑨$ $= 6 \* GB3 \* MERGEFORMAT ⑥$ $= 2 \* GB3 \* MERGEFORMAT ②$ $EQ \o\ac(○,14)$ $EQ \o\ac(○,15)$ $EQ \o\ac(○,8)$ $= 7 \* GB3 \* MERGEFORMAT ⑦$ $= 5 \* GB3 \* MERGEFORMAT ⑤$ $= 4 \* GB3 \* MERGEFORMAT ④$ $= 3 \* GB3 \* MERGEFORMAT ③$ $EQ \o\ac(○,12)$ $EQ \o\ac(○,13)$ $EQ \o\ac(○,11)$

1 Expansion kettle 2 Inlet tube bracket of battery water pump 3 Inlet tube of battery pump

4 Cooling water pump 5 Electronic water pump bracket 6 Outlet tube of battery pump

7 Battery cooler 8 Bracket of battery cooler 9 outlet tube of battery cooler

10 Water heater 11 Bracket of water heater 12 Outlet tube of water heater

13 Aluminum connecting tube 14. Water inlet pipe of battery 15. Water outlet pipe of battery

16. Inlet tube of expansion kettle

System principle

Water heater

,Battery pack

,Heat exchanger

,Water heater

,Water pump

Basic inspection

1 Check whether the coolant is filled up. If not ,please fill up. Please refer to the chapter “maintenance-cooling system”.

Warning:

Do not open the filling port of the expansion kettle assembly when the temperature of the coolant is very high in case of hurt caused by spilt coolant.

2 Start the cooling pump and touch the shell of the pump to check whether there is continuous vibration. If not, please repair or replace it.

Malfunction Diagnosis

Analysis of overheating or undercooling

	Symptom		Inspection items
Cooling system components failure	Bad cooling	Water pump failure	Cooling water pump breakdown
			Power supply of cooling water pump
		Battery cooler breakdown	Dust or paper jammed
			Mechanical damage
		Cooling pipe plug	Excessive foreign matter (rust, dirt, sand, etc.)
	Bad cooling	Water pump failure	Cooling water pump breakdown
			Power supply of cooling water pump
		Water heater failure	Water heater breakdown
			Power supply of water heater
	Incorrect coolant type
	Inferior coolant		Viscous coolant
	Insufficient coolant	Coolant leakage	Coolant hose	Clamps loose
				Hose ruptured
			Cooling water pump	Poor sealing
			Expansion kettle	Expansion kettle is damaged
			Water heater	Water heater breakdown
			Battery cooler	Battery cooler breakdown

Disassembly and assembly

Expansion kettle

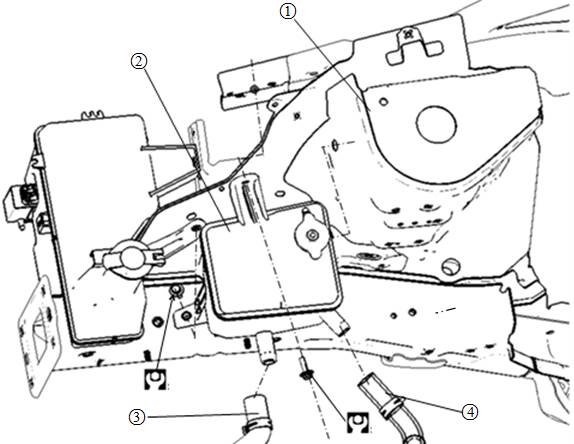

Explosive view

$EQ \o\ac(○,3)$

1 Right carling in the engine compartment 2 Expansion kettle 3 Inlet tube of battery pump 4 Inlet tube of expansion kettle

：N·m

Disassembly and assembly

Disassembly

Warning:

Do not remove the expansion kettle lid soon after pulling up in case of serious scald caused by high temperature coolant split out from the filling port of the expansion kettle.

1.Empty coolant Please refer to the chapter “maintenance-cooling system”.

Note：

Operate when power battery temperature is low.

2 Unplug the connector of the expansion kettle.

Attention：

Please keep from being scratched on hands when unplugging the connector.

Keep the connector from spilt coolant . If there are coolant on the connector, wipe clean immediately.

3. Disassemble the inlet tube of battery pump and inlet tube of expansion kettle.

4. Disassemble the bolts of the expansion kettle, take down the expansion kettle.

● Tightening torque:7~11N·m

Attention：

Keep the cooling pump from falling down or violent impact. Otherwise, please replace it.

Disassemble the bolts of the cooling pump and detach the pump and the bracket.

● Tightening torque:7～11N·m

Assembly

Install in the reverse order of the disassemble procedures .

Please hold the cooling pump steadily with a hand when installing the outlet tube of the battery water pump and outlet tube of the battery cooler

Electronic coolant pump

Explosive view

1 Power assembly joist 2 Cooling pump 3 Inlet tube of battery water pump 4 outlet tube of battery water pump

5 Electronic water pump bracket

：N·m

Disassembly and assembly

Disassembly

Warning:

Do not remove the expansion kettle lid soon after pulling up in case of serious scald caused by high temperature coolant split out from the filling port of the expansion kettle.

1.Emptying coolant Please refer to the chapter “maintenance-cooling system”.

Note：

Operate when power battery temperature is low.

2 Unplug the connector of the cooling pump.

Attention：

Please keep from being scratched on hands when unplugging the connector.

Keep the connector and high voltage components from spilt coolant . If there are coolant on the connector, wipe it clean immediately.

3 Disassemble the inlet and outlet tube of battery pump.

Disassemble the bolts and nuts of the cooling pump bracket and detach the pump and the electronic water pump bracket.

Tightening torque of nuts:85-90 N·m ,Tightening torque of bolts:7-11 N·m.

Attention：

Keep the cooling pump from falling down or violent impact. Otherwise, please replace it.

Disassemble the bolts of the cooling pump and detach the pump and the bracket.

● Tightening torque:7～11N·m

Assembly

Note：

Please hold the cooling pump steadily with a hand when installing the inlet and outlet tube of the cooling pump .

Battery cooler

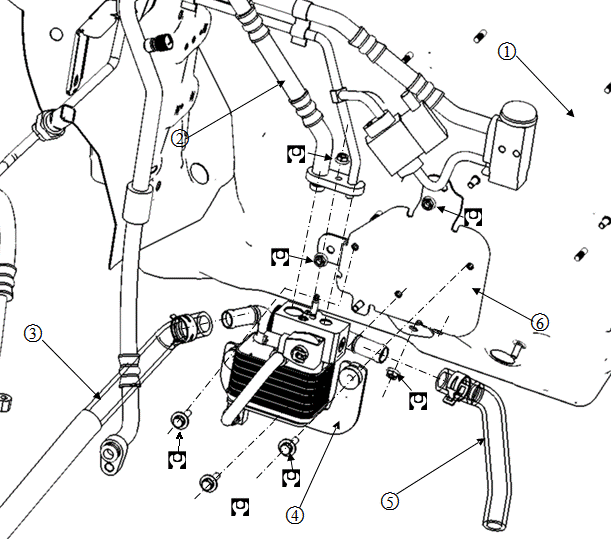

Explosive view

$EQ \o\ac(○,3)$

$EQ \o\ac(○,4)$

$EQ \o\ac(○,5)$

1 Front board assembly 2 pipeline and expansion valve assembly 3 outlet tube of battery water pump 4 battery cooler

5 outlet tube of battery cooler 6 battery cooler bracket

：N·m

Disassembly and assembly

Disassembly

Warning:

Do not remove the expansion kettle lid soon after pulling up in case of serious scald caused by high temperature coolant split out from the filling port of the expansion kettle.

1.Emptying coolant Please refer to the chapter “maintenance-cooling system”.

Note：

Operate when power battery temperature is low.

2 Unplug the connector of the cooling pump.

Attention：

Please keep from being scratched on hands when unplugging the connector.

Keep the connector and high voltage components from spilt coolant . If there are coolant on the connector and high voltage components, wipe it off immediately.

3 Disassemble the outlet tube of battery water pump and outlet tube of battery cooler

4 Disassemble the nuts of the battery cooler bracket and take off the battery cooler and the bracket.

Tightening torque of nuts:7-11 N·m ,Tightening torque of bolts:7-11 N·m.

Attention：

Keep the cooling pump from falling down or violent impact. Otherwise, please replace it.

Disassemble the bolts of the battery cooler bracket and detach the battery cooler and the bracket.

● Tightening torque:7～11N·m

Assembly

Install in the reverse order of the disassemble procedures .

Note：

Please hold the cooling pump steadily with a hand when installing the outlet tube of the battery water pump and outlet tube of the battery cooler

Water heater

Explosive view

1 Front board assembly 2 water heater bracket 3 outlet tube of battery cooler 4 water heater

5 outlet tube of water heater

：N·m

Disassembly and assembly

Disassembly

Warning:

Do not remove the expansion kettle lid soon after pulling up in case of serious scald caused by high temperature coolant split out from the filling port of the expansion kettle.

1.Empty coolant Please refer to the chapter “maintenance-cooling system”.

Note：

Operate when power battery temperature is low.

2 Unplug the connector of the water heater.

Attention：

Please keep from being scratched on hands when unplugging the connector.

Keep the connectors and high voltage components from spilt coolant. If there are coolant on the connector and high voltage components, wipe it off immediately.

3 Disassemble the outlet tube of battery cooler and outlet tube of water heater

4 Disassemble the nuts of the water heater bracket and take off the battery cooler and the battery cooler bracket.

Tightening torque of nuts:7-11 N·m ,Tightening torque of bolts:7-11 N·m.

Attention：

Keep the cooling pump from falling down or violent impact. Otherwise, please replace it.

Disassemble the bolts of the battery cooler bracket and detach the battery cooler and the battery cooler bracket.

● Tightening torque:7～11N·m

Assembly

Install in the reverse order of the disassemble procedures .

Note：

Please hold the cooling pump steadily with a hand when installing the outlet tube of the battery water pump and outlet tube of the battery cooler

Cooling water pipeline

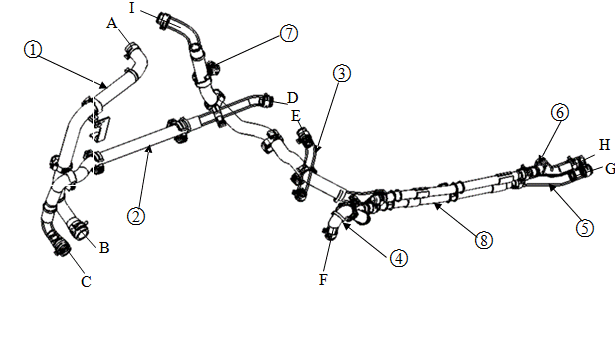

Components layout

1 Inlet tube of battery water pump 2 Outlet tube of battery water pump 3 Outlet tube of battery cooler

4 Outlet tube of water heater 5 Water inlet tube of battery 6.Water outlet tube of battery

7 Inlet tube of expansion kettle

A Expansion kettle B Coolant pump C Coolant pump D Battery cooler

E Battery cooler F Water heater G Power battery assembly H Power battery assembly

I Expansion kettle

：N·m

Reparation data and specification

Coolant

Coolant filling amount (L)	≈8
Expansion kettle volume (L)	1.4
