2 Technicians shouldn't operate electronic pacemaker or other medical electronic devices in this vehicle, or the functions of medical devices may be affected by strong magnetic components.

Precautions for normal charging

Warning:

3 If a technician uses a medical electric device such as an implantable cardiac pacemaker or an

implantable heart pacemaker defibrillator, the possible effects on the devices must be checked before starting the charge operation.

4 If a technician using a medical electric device such as implantable cardiac

pacemaker or an implantable heart pacemaker defibrillator .he must not enter the vehicle compartment (including luggage room) during normal charge operation.

Communication equipment operation precautions

● If the technician uses medical electronic devices such as cardiac pacemaker, cardioverter, defibrillator and other medical electronic equipment, please keep enough distance with the communication devices.

● The electromagnetic wave of the remote intelligent terminal may affect the function of the medical device such as cardiac pacemaker, cardioverter, defibrillator and other medical electronic devices.

● If the technician uses the medical device such as cardiac pacemaker, multiplexer, defibrillator and other medical electronic equipment, the electromagnetic wave of the remote intelligent terminal may affect the function of the device. The possible effect of the remote intelligent terminal on the medical electronic devices must be checked by the manufactures of the medical electronic devices .

Inspection of key points before the maintenance

The high-voltage system may automatically operate. Please confirm the remote air conditioning and fixed-time charging haven’t been set before the maintenance.

Attention：

If remote air-conditioning or fixed-time charging is set, the high voltage system will run automatically even the switch is off.

Precautions of auxiliary restraint system "airbag" and "seat belt pretension"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this Service Manual.

Warning:

Always observe the following items for preventing accidental activation.

1 To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, all maintenance must be performed by an authorized JAC dealer.

2 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.

3 Do not use any electrical test devices to test any circuit of the auxiliary restraint system unless these tests are in the instructions described in the service manual. The wire harness and connectors of the auxiliary restraint system should adopt to yellow or orange color.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

● When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the power switch ON, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious

injury.

● When using power tools or a hammer, turn the key in the "LOCK" position, unplug the cathode of 12V lead-acid battery and wait at least 1 minute for maintenance.

Precautions of removing the 12V battery

When removing the 12V battery, turn the power switch to “ON”, and then to “OFF”.

Note:

1 The automatic 12V battery charge control may start even when the power switch is in OFF state.

1 The automatic 12V battery charge control does not start within approximately one hour when the power switch is turned ON/OFF.

Matters needing attention

1 Before the repairing which no need the power: rotate the key to LOCK gear and disconnect the 12V battery negative.

2 After disconnect the 12V battery negative, the memory of radio and other control devices will be cleared.

3 Replace new oil seal, gasket,gasket ring,O ring,lock washer,cotter pins,self-locking nuts and other parts.

4 Place the removed parts in order and according to the positions as they are assembled .

5 If necessary, use approved binders, sealants or equivalent products.

6 For safe and efficient repair work, you should use hand tools, power tools (disassembly only) and special tools.

7 Before repairing the vehicle:

Cover the fender, interior and carpet with a suitable cover. Be careful do not scratch the paintwork with keys, buttons or something like this.

Front bumper

Attention

● The bumper is a resin material. Do not exert strength on it and avoid contact with the oil.

● Do not scratch the outer surface of the bumper during disassembly.

● When the front bumper is assembled, it is put in place with the bumper fixed bracket card.

● After installation, check whether there is a surface difference and clearance between the bumper and the vehicle body.

Disassembly and Assembly

Removal

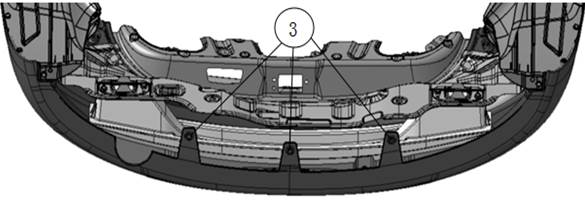

1 Open engine cover and support it with rod Remove the 21 expansion buckles（5522101U2152） on the upper、side and lower part of front bumper illustrated in diagram 1 and the two hex T-shaped screws （12442-0520F71）illustrated in diagram 2. Tools: cross screwdriver and straight screwdriver.

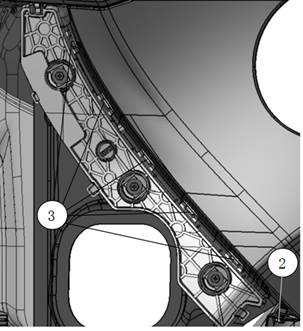

2 remove the two hex T-shaped screws（12442-0520F71）fixing the left and right side of the front bumper with fender。 illustrated in diagram 3

3 Hold the lower flanging of the bumper by hand to apply force outwards to separate the bumper from the fender , insert into the gap with a straight screwdriver , lift the retaining bar bracket and the bumper flange in turn from the bottom upwards(illustrated in diagram 3) , and separate the bumper and the bumper support.

4 Remove the whole bumper,disconnect the front combination light’s line harness connector and remove the bumper.

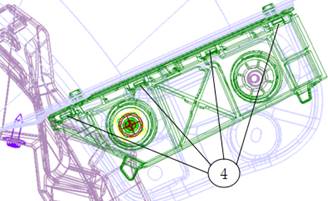

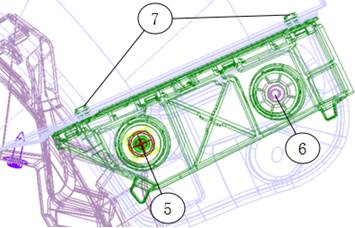

5 The removal of front bumper left and right fixing bracket,remove the bolts（11254-0616F62）illustrated in diagram 6 with socket spanner,one left and right side,remove the screws（12493-0620F71）illustrated in diagram 5 with cross screwdriver,one left and right side,pull out the buckles outwards illustrated in diagram 7 with buckle pliers,two left and right side,take down bumper bracket.

Assembly

Follow the opposite sequence of the disassembly to assemble.

Install anti-collision beam of front bumper and front cabin bracket

Matters needing attention

● The front module and the car body are fixed by 8 bolts, and the tightening torque is 20N.m to 25N.m;

Disassembly and Assembly

Removal

1 Before removing the anti-collision beam and the front cabin bracket,remove the front bumper and left and right headlamp, disconnect the pipes of the radiator、 condenser、oil cooler (if assembled) on the front cabin bracket, connecting with body, and remove the wire harness on the front cabin bracket.

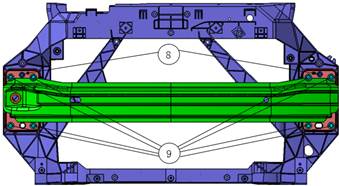

2 remove the eight bolts（11254-0835F62）illustrated in diagram 9.

3 Take down front cabin bracket assembly.

4 the front anti-collision beam can be disassembled solely through removing the two bolts(11254-0616F62) illustrated in diagram 8.

Assembly

Follow the opposite sequence of the disassembly to assemble.

Rear bumper

Precautions

● The bumper is a resin material. Do not exert strength on it and avoid contact with the oil.

● Do not scratch the outer surface of the bumper during disassembly.

Disassembly and Assembly

5 Open the tail gate and remove the left and right combination lamp assembly、left and right rear wheel cover.

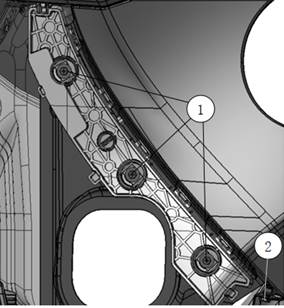

6 Remove the rear bumper fixing bracket screws（12442-0520F71) and buckles(2804012U2210) illustrated in diagram 1,three left and right side;remove the screws（12442-0520F71) fixing bumper and side body illustrated in diagram 2,one left and right side;remove the three buckles（5522101U2152) fixing the lower part of bumper and rear anti-collision beam illustrated in diagram 3.

7 Hold the lower flanging of the bumper by hand to apply force outwards to separate the bumper from the bodywork sheet metal , insert into the gap with a straight screwdriver , lift the retaining bar bracket and the bumper flange in turn from the bottom upwards , and separate the bumper and the bumper support.

8 disassemble rear bumper. Disconnect the wire harness connector and take down the bumper.

Rear bumper disassembly

1 The removal of rear bumper left and right fixing bracket,remove the screws（12442-0520F71）illustrated in diagram 1 with cross screwdriver,three left and right side,pull out the buckles outwards with buckle pliers,two left and right side,take down bumper bracket.

2 Follow the opposite sequence of the disassembly to assemble.

Rear anti-collision beam

Precautions

● The rear anti-collision beam assembly and the car body are fixed by 4 nuts, and the tightening torque is 9N.m to 11N.m.

Disassembly and Assembly

1 Before removing the rear anti-collision beam,remove the rear bumper,then remove the 4 fixing nuts (13395-0800F71) of rear anti-collision beam illustrated in diagram 4.

2 Take down rear anti-collision beam assembly.

3 Follow the opposite sequence of the disassembly to assemble.
