Repair high-strength steel

Repair high-strength steel

Safety Precaution

Precautions of electric technician  who use Medical Electronic Equipment

Inspection of key points before the maintenance

Precautions of auxiliary restraint system "airbag" and "seat belt pretension"

Precautions of removing the 12V battery

Matters needing attention

Maintenance Precautions























Safety Precaution

Precautions of electric technician  who use Medical Electronic Equipment

Prohibit Operation

Warning:

         Strong magnetic components have been assembled on this vehicle.

         Technicians shouldn't operate electronic pacemaker or other medical electronic devices in this vehicle, or the functions of medical devices may be affected by strong magnetic components.

Precautions for normal charging

Warning:

         If a technician uses a medical electric device such as an implantable cardiac pacemaker or a

heart pacemaker/defibrillator, the effects of the devices must be checked  before starting the charge operation.

         If a technician using a medical electric device such as implantable cardiac

pacemaker or an implantable heart pacemaker defibrillator .he must not enter the vehicle compartment (including luggage room) during normal charge operation.

Communication equipment operation precautions

         If the technician uses medical electronic devices such as  cardiac pacemaker, cardioverter or defibrillator and other medical electronic equipment, please keep enough distance with the communication devices.

         The electromagnetic wave of the remote intelligent terminal may affect the function of the medical device such as cardiac pacemaker, cardioverter, defibrillator and other medical electronic devices.

         If the technician uses the medical device such as  cardiac pacemaker, multiplexer, defibrillator and other medical electronic equipment, the electromagnetic wave of the remote intelligent terminal may affect the function of the device. The possible effect of the remote intelligent terminal on the medical electronic devices must be checked by the manufactures of the medical electronic devices  .

Inspection of key points before the maintenance

The high-voltage system may automatically operate. Please confirm the remote air conditioning and fixed-time charging haven’t been set before the maintenance.

Attention:

If remote air-conditioning or fixed-time charging is set, the high voltage system will run automatically even the switch is off.

Precautions of auxiliary restraint system "airbag" and "seat belt pretension"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. This system includes seat belt switch inputs and dual front air bags. Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this Service Manual.

Warning:

Always observe the following items for preventing accidental activation:

         To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, all maintenance must be performed by an authorized JAC dealer.

         Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.

         Do not use any electrical test devices to test any circuit of the auxiliary restraint system unless these tests are in the instructions described in the service manual. The wire harness and connectors of the auxiliary restraint system should adopt to yellow or orange color.

Precautions when using power tools(pneumatic or electric) and hammer

         When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the power switch ON, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious

injury.

         When using  power tools or a hammer, turn the key in the "LOCK" position, unplug the cathode of 12V lead-acid battery and wait at least 1 minute for maintenance.

Precautions of removing the 12V battery

When removing the 12V battery, turn the power switch to “ON”, and then to “OFF”.

Note:

         The automatic 12V battery charge function may start even when the power switch is in “LOCK”state.

         The automatic 12V battery charge control does not start within approximately one hour when the power switch is turned ON/OFF.



Matters needing attention

         Before the repairing which no need the power: rotate the key to LOCK gear and disconnect the 12V battery negative.

         After disconnect the 12V battery negative, the memory of radio and other control devices will be cleared.

         Replace new oil seal, gasket,gasket ring,O-type ring,lock washer,cotter pins,self-locking nuts and other parts.

         Place the removed parts in order and according to the positions as they are assembled .

         If necessary, use approved binders, sealants or equivalent products.

         For safe and efficient repair work, you should use hand tools, power tools (disassembly only) and special tools.

         Before repairing the vehicle:

Cover the fender, interior and carpet with a suitable cover. Be careful do not scratch the paintwork with keys, buttons or something like this.

























Maintenance Precautions

    It is not recommended to heat when repairing some steel framed structure, because heating will weaken its performance; when heating is inevitable, temperature of high strength steel part shall not exceed 550 ℃.

截图00

    When straightening car body, should be careful to pull high strength steel, because it is extremely strong, over pulling will make other parts that connect with steel deformed, in this case, increasing measuring numbers and careful pulling the steel panel is the only way.

              截图01

    When cutting high strength steel, saw is a choice if can be replaced to avoid gas cutting, which can avoid surrounding panel wakening due to high temperature. If gas cutting is inevitable, be sure temperature influencing range is within 50mm.

截图02



    When welding high strength steel, spot welding is strongly recommended at any case,minimizing the influence to its surroundings due to welding heat; Rare gas shielded welding is the second choice when spot welding can’t proceed, do not use  gas welding due to its weak welding strength.

截图03

    The strength of spot welding position is higher than other places that don’t have welding position on high strength steel. When cutting welding spots of high strength steel, using drilling machine with low rpm and high torque(1,000 to 1,200 rpm) can increase its durability and operability.

截图04

Precautions of spot welding high strength steel

    This task should be carried out under the standard operation condition, following issues should be paid attention when spot welding high strength steel:

electrode tip diameter shall be chosen according to metal panel thickness.

截图05





Panel shall be stick to each other without sundries or intervals

截图06

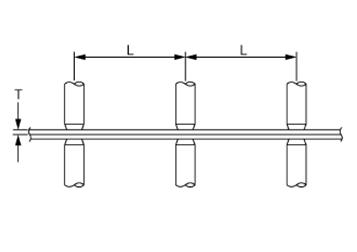

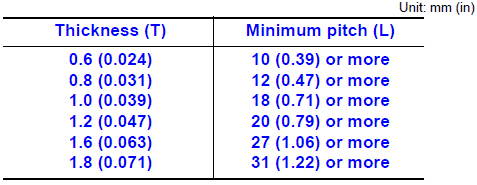

    Restrain welding points intervals size according to the following instructions

截图07



Car body components

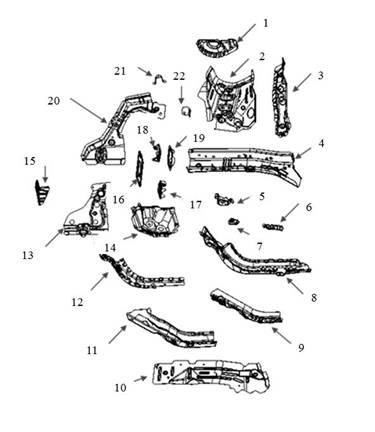

Engine compartment groups:

截图01

Serial No

Position name

Material strength(Mpa)

1

Shock absorber installing panel

Up 440

2

Front wheel cover

Under440

3

Front wheel cover reinforcing plate

Up 440

4

Carling front part of the engine compartment

Up 440

5

Front installing holder of sub-frame

Up 440

6

Rear reinforcing plate of front part of the engine compartment

Up 440

7

Reinforcing plate of front installing holder of sub-frame

Under440

8

Rear installing panels of sub-frame

Up 440

9

Reinforcing plate of rear part of the engine compartment

Up 440

10

Rear sealing panel of carling of the engine compartment

Up 440

11

Rear part of carling of the engine compartment

Up 440

12

Reinforcing plate of rear installing panels of sub-frame

Up 440

13

Rear sealing panel of front suspension boundary beam of the engine compartment

Up 440

14

Rear part connecting panel of carling of the engine compartment

Up 440

15

Installing holder connecting panel of wing panel headlights

Under440

16

Installing panle of anti-collision beam

Up 440

17

Front reinforcing plate of front part of the engine compartment

Under440

18

Mid reinforcing plate of front part of the engine compartment

Under440

19

Reinforcing plate of  installing panle of front anti-collision beam

Up 440

20

Front suspension boundary beam of the engine compartment

Up 440

21

Rear installing holder of wing panel

Under440

22

Connecting panel of front suspension boundary beam of the engine compartment

Under440

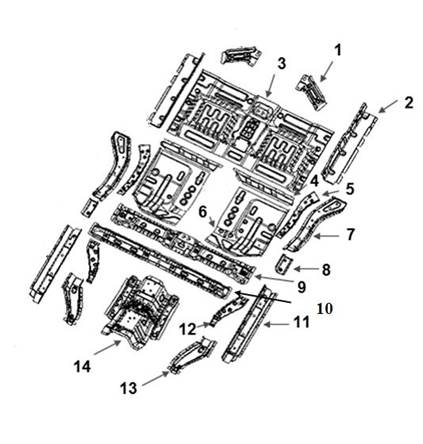

Front floor part group:

截图02



Serial No

Position name

Material strength(Mpa)

1

Lower beam of front floor

Up 440

2

Connecting panel of floor carling

Up 440

3

Upper floor of battery

Under440

4

Front connecting panel of upper floor of battery

Up 440

5

Connecting panel of front floor carling

Up 440

6

Front floor

Under440

7

Front floor carling

Up 440

8

Rear reinforcing plate of floor lower carling

Up 440

9

Rear beam of front seats

Up 440

10

Front beam of front seats

Up 440

11

Rear part of floor lower carling

Up 440

12

Front reinforcing plate of floor lower carling

Up 440

13

Front part of floor lower carling

Up 440

14

Central passage

Up 440

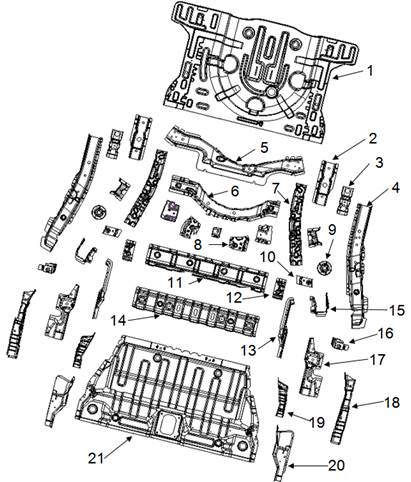

Rear floor part group:



Serial No

Position name

Material strength(Mpa)

1

Spare tire installing panel

Under440

2

Rear part of rear floor left carling

Up 440

3

Rear reinforcing plate of rear floor left carling

Under440

4

Left carling of rear floor structure

Up 440

5

Upper torsion beam of rear floor

Up 440

6

Rear beam of rear floor structure

Up 440

7

Front reinforcing plate of left carling of rear floor structure

Under440

8

Left installing holder of battery end

Up 440

9

Left installing base of rear suspension

Under 440

10

Installing reinforcing plate of  left rear safety belt

Under 440

11

Front beam of rear floor structure

Up 440

12

Left connecting plate of front beam of rear floor structure

Up 440

13

Connecting plate of rear left installing plate of battery side

Up 440

14

Mid fixing plate of rear seat

Under440

15

Left installing plate of rear axle

Up 440

16

Reinforcing plate of left installing plate of battery side rear

Up 440

17

Left installing plate of battery side rear

Up 440

18

Left threshold rear part

Up 440

19

Left threshold rear part connecting plate

Up 440

20

Left threshold rear part reinforcing plate

Under440

21

Left floor seat installing plate

Under440





Front mold group:

截图06



Serial No

Position name

Material strength(Mpa)

1

Front mold plate

Under440

2

Front mold plate beam

Up440

3

vacuum booster installing plate

Under440

4

Front mold plate reinforcing plate

Up 440

5

Connecting panel of right frnot floor carling of front mold

Up 440

6

Right reinforcing plate of front mold beam

Up 440

7

Central passage connecting panel of front mold plate

Up 440

8

Right installing holder of AC

Under440

9

Steering column cover

Under440

10

Left installing holder of AC

Under440

11

Connecting panel of left frnot floor carling of front mold

Up 440

12

Accelerator pedal installing plate

Under440

13

Left reinforcing plate of front mold beam

Up440

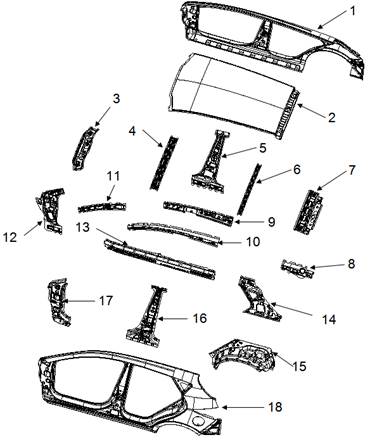

Side skirt group:



Serial No

Component name

Material strength(Mpa)

1

Out panel of right side skirt

Under440

2

Out panel of  top cover

Under440

3

Front beam of top cover

Under440

4

Central beam of top cover

Up 440

5

Left mid door column trim panel

Up 440

6

Second beam of top cover

Under440

7

Upper panel of rear beam of top cover

Up 440

8

Left reinforcing plate of top cover side skirt connecting

Under440

9

Left mid door column upper frame panel

Under440

10

Reinforcing plate of left mid door column upper frame panel

Up440

11

Inner upper panel of left A column

Up 440

12

Lower inner panel of left A column

Up 440

13

Left threshold reinforcing plate

Up440

14

Upper inner panel of left C column

Under440

15

Outer panel of left rear wheel cover

Under440

16

Reinforcing plate of left B column out panel

Up 440

17

Reinforcing plate of left front door column

Up440

18

Out panel of left side skirt

Under440



Dispose parts of extra high strength steel

    Weaken or additional connecting is forbidden;

It is forbidden to weaken or additional connect extra high strength steel such as carling, if it is damaged, front floor assembly must be replaced.

Spray paint

    Operate according to battery protection standard during dry spray;

    When spray booth is used, keep the temperature in and out of threshold( lower  than 60℃) , minimizing damage to lithium battery.

Attention:

         Install a non-contact thermometer;

         If battery is covered, the cover shall be removed to measure inner temperature;

         If the spray temperature exceeds 60℃ out of threshold, battery should be removed before spraying.

Car protection

Seat/glass/carpet all need to be removed or covered by appropriate material(Splash cover), so they will not be dirty or damaged by welding slag. Also, when cutting or welding part is close to high voltage part, this high voltage part shall be covered by insulating heatproof cover(Splash cover).
