Reversing radar system





1. Outline



(1) structure summary



The reversing radar system consists of a sensor, a control module and an alarm device. The reversing radar system is based on the principle of ultrasonic distance measurement and computer data blur processing technology to determine whether there are obstacles in the reversing direction of the car, and to indicate the distance of the nearest obstacle. When the operating gear is hung in the reverse gear, the reverse switch is turned on, and the reverse light is on. After the controller receives the reverse signal, the ultrasonic sensor is controlled to send an ultrasonic signal, and the principle of the sensor self-receiving and multiple-receiving is used to accurately and completely return the echo signal. Passed to the controller, after analysis and processing by the controller, it is determined that there is an obstacle in the detection distance and the distance of the nearest obstacle, and the buzzer in the combination meter is controlled to issue an alarm sound, and different frequencies are emitted according to different distance ranges. The tweet reminds the distance of the obstacle and achieves the security warning function.

(2) the working principle







Buzzer

Reversing radar controller

R switch

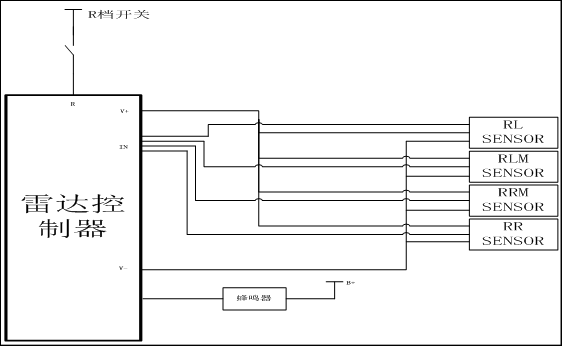

                         Reversing assistance system block diagram











As shown in the figure, the reversing radar system consists of the following components:

■Control module;

■ sensor module;

Buzzer (integrated in the meter).









二、System interface definition

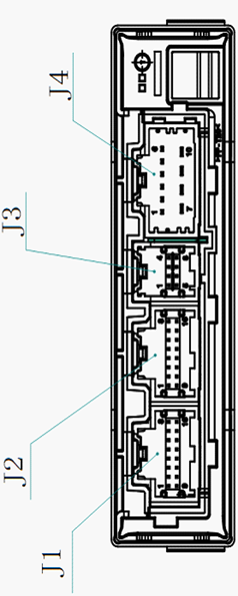

1.Connectors of control module:

                               Table 1 controller module plug-in signal definition









2. Camera connector：

Radar sensor connector shape and pin sequence	Definition of the horn connector (component side)				Remark
	1	R+(power positive)	4	Reserved
	2	GND (power negative)
Injection: AMP 967439-1	3	Signal

       Table 2 Probe plug signal definition

























3. Fault diagnosis



(1) Troubleshooting Table





(2) the fault diagnosis flow chart



1. System dis-function





2 Sensor foes not work



Steps	Checking content	Solution	Decision specification	Next step
				Yes	No
1	Confirm the fault phenomenon	Turn the ignition switch ON, engage the transmission in reverse, and place appropriate obstacles in the proper distance from the rear of the vehicle.	Is it possible to hear parking alert sounds?	Handle intermittent problems and go to the next step	Go to step 3
2	Check for intermittent failure	Check and handle the reversing radar sensor harness connector looseness fault.
3	Check the wiring between the reversing radar sensor and the reversing radar controller	Measure the resistance between the reversing radar sensor harness connector RB07 terminal 1 and the reverse radar controller harness connector F07 terminals 1/2/3/4.	Standard resistance: less than 1Ω, resistance meets the standard?	Next step	Repair or replace the wiring harness
4	Check the wiring between the reversing radar sensor and the reversing radar controller	Measure the resistance between the reversing radar sensor harness connector RB07 terminal 2 and the reversing radar controller harness connector F07 terminal 14.	Standard resistance: less than 1Ω, resistance meets the standard?	Next step	Repair or replace the wiring harness
5	Check the wiring between the reversing radar sensor and the reversing radar controller	Measure the resistance between the reversing radar sensor harness connector RB07 terminal 4 and the reversing radar controller harness connector F07 terminal 23.	Standard resistance: less than 1Ω, resistance meets the standard?	Next step	Repair or replace the wiring harness
6	Replacing the reversing radar sensor, troubleshooting?	Replace the new reversing radar sensor. Put the ignition switch in the ON position and the transmission is engaged in the reverse gear to enter the reverse position.	Can detect obstacles?	Troubleshooting.



4. reversing radar controller assembly demolition

    (1) Disassembly

1  Open the engine compartment cover.

2 Disconnect the negative port.of the battery

②

3. Remove rear door sill assembly See rear door sill assembly

4. Remove the rear door sill guard plate assembly See the rear

door sill guard plate assembly

5. Remove rear seat cushion assembly See rear seat assembly

6. Remove rear seat back assembly See rear seat assembly

7. Remove the backrest shaft bracket See C pillar lower panel

assembly

8. Dismantle the  C pillar lower panel assembly

①

        refer to the C pillar lower panel assembly

9. Remove C-pillar trim assembly See C-pillar trim assembly

10. Disassemble the trunk left panel assembly See the trunk side trim panel assembly

11. Disassemble the reversing radar controller assembly

     1). Disconnect the parking sensor controller assembly harness connector 1.

     2). Disassemble the parking sensor controller assembly 2 fixing nuts 2



  (2) Installation



1. Install reversing radar controller assembly

1). Install and tighten the reversing radar controller assembly 2 fixing nuts.

Tightening torque 4~6N·m

          2). Connect the reversing radar controller assembly harness connector.

2. Install the trunk left panel assembly

3. Install the C pillar trim panel assembly

4. Install C pillar lower trim assembly

5. Install the backrest shaft bracket

6. Install rear seat backrest assembly

7. Install rear seat cushion assembly

8. Install the rear door sill guard plate assembly

9. Install tailgate door assembly

10. Connect the battery negative cable.

11.Close the engine compartment cover



5. Sensor assy disassembly



(1) Disassembly



1  Open the engine compartment cover.

2  Disconnect the negative harness of the battery refer to the disconnection and connection of the battery

3.  Disassemble rear side body combination lamp assembly, refer to rear side body combination lamp assembly

Disassemble rear bumper assembly

5. Unplug sensor electrical connector

6. Remove the sensor probe



(2) Installation



1. Connect the new sensor probe to the

corresponding mounting bracket

2. Connect the electrical connector

3. Install rear bumper assembly

3. Install rear side body combination lamp assembly

4. Connect the battery negative cable.

Close the engine compartment cover

Reversing camera system

1. Outline



(1) structure summary

The reversing image system mainly consists of a rearview camera and an MP5 main unit. The camera is powered by the IGN signal. When the R-range signal is detected through the CAN bus node, the system starts immediately. At the same time, the steering wheel angle signal is obtained through the CAN bus node and the rear of the vehicle is obtained. The real-time image is sent to the camera for trajectory path calculation and image superposition processing. Finally, the image information superimposed with the reverse trajectory is transmitted to the vehicle display to assist the driver in reversing the vehicle.

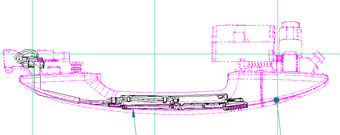

2.Original location map

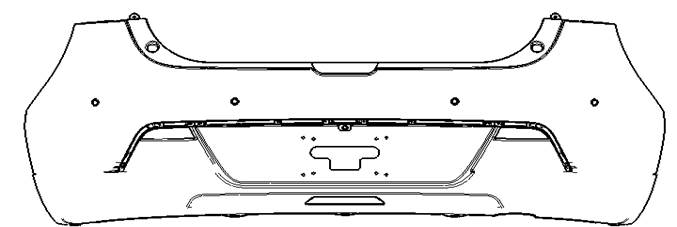

Camera location map:



Remarks: The camera is installed on the corresponding mounting hole of the rear protection through the card connection.



3.System Block Diagram and Schematic

camera

Video -

Video +

Reverse Switch

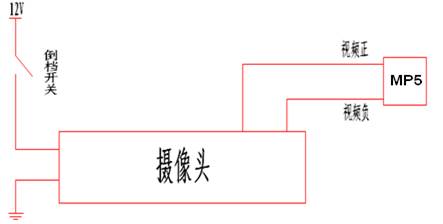

            Reversing camera system block diagram

TPMS includes the following parts as shown in picture:

■Reversing camera

■MP5





4.System interface definition

1.Connectors of control module:

Table 1 controller module plug-in signal definition

Reversing camera connector shape and pin sequence	Definition of the horn connector (component side)				Remark
	1	GND	4	NC	Reverse feed; working current <120mA
	2	R gear power supply	5	Positive video
	3	NC	6	Negative video





















5.Reversing camera disassembly

1、 Disassembly

1)Dismantle the rear bumper

2)Unplug sensor electrical connector

3) Use a screwdriver to open the side of the camera snap structure and remove the sensor probe

2、 Installation

1) Attach a new camera card to the corresponding mounting bracket

2) Connect the electrical connector

3) assembly of rear bumper



Tire pressure monitoring





1. Outline



(1) structure summary



Tire pressure monitoring system can monitor the pressure and temperature in the tire, give alarm in time when the setting value is exceeded (the alarm indicator is indicated by the instrument light), help the driver to grasp the condition of the tire in real time and reduce the traffic accidents caused by the tire failure, increasing vehicle driving safety.



TPMS system consists of three components: alarm indicator (integrated in the dashboard), tire pressure monitoring controller, tire pressure monitoring sensor.Detailed composition is as follows



Spare parts name	Quantity	Remark
Tire pressure monitoring controller	1	Install under the secondary instrument panel.
Tire pressure monitoring controller	4	Installed in four tires
alarm indicator	2	Integrated on the instrument cluster (two indicators) 1, tire pressure alarm indicator. 2, TPMS alarm indicator.



Alarm indicator





Symbol (instrument)	Indicator lamp type	Indicator type
	Tire pressure abnormal	Rapid Leakage: Flashing Low Pressure: Steady High Pressure: Steady High Temperature: Steady
	System fault	Sensor battery low battery: Always on Sensor failure: Steady light High frequency acceptance failure: Steady light Communication between controller and instrument disconnected: Steady light



Alarm type and description



Alarm type	Description
Quick tire leak	When the system is running, one or more tire pressure drops more than 30kPa within 1 minute and a rapid leak alarm is issued; if the pressure does not change or rises, the rapid leak alarm is released.
Low pressure	Under system operating conditions, one or more tire pressures are lower than the manufacturer's specified cold pressure value 75% (165kpa), issued a low pressure alarm; pressure returned to normal, lifting the low pressure alarm.
High pressure	Under system operating conditions, one or more tire pressures are higher than the manufacturer's specified cold pressure value 125% (275kpa), a high pressure alarm is issued; the pressure returns to normal and the low pressure alarm is released.
High temperature	When the system is running, one or more tire temperatures are higher than 85 °C and a high temperature alarm is issued; the temperature returns to normal and the high temperature alarm is released.
Sensor battery low power	When the system is running, one or more of the tire pressure sensors have a battery level lower than a certain value and a low-power alarm is issued. When the power is restored to normal, the low battery alarm is released.
Sensor failure	When the system is running, one or two sensor valid data is not received within 5-10 minutes (the rest of the sensors can receive valid data), and a sensor failure alarm is issued; all sensor valid data are received and the failure alarm is released.
High-frequency acceptance failure	In the system running state, the receiving controller does not receive any sensor data for 20 consecutive minutes and sends a high frequency to accept the failure alarm; any sensor valid data is received and the failure alarm is released.



1. Ignition switch ON/START. If four sensors are bound, the tire pressure warning indicator will turn off after 2s.

2. Ignition switch ON/START. If four sensors are not connected, the TPMS lamp will flash after the tire pressure warning indicator point and TPMS indicator light turn on 2s and then go out.

3. Enter the sensor learning mode. Both indicators will light up at the same time (lit). After the binding is successful, both indicators will be off at the same time.

4. During running, the system and pressure are normal and the two indicators do not light up.

5. The alarm is released and the corresponding alarm indicator goes out.

6. The system is divided into three levels according to the priority of the alarm situation (the highest level);

       Level 1: Fast Leakage

Level 2: Low pressure, high pressure, and high temperature Three levels: Sensor battery low power,

Sensor failure, high frequency acceptance failure

When an alarm status is indicated, the high-level alarm indicator lights first, and both LEDs do not light at the same time.



After an alarm occurs (the corresponding indicator light), if the ignition switch is turned off and then back on, the system clear various alarm status indication, re-test.

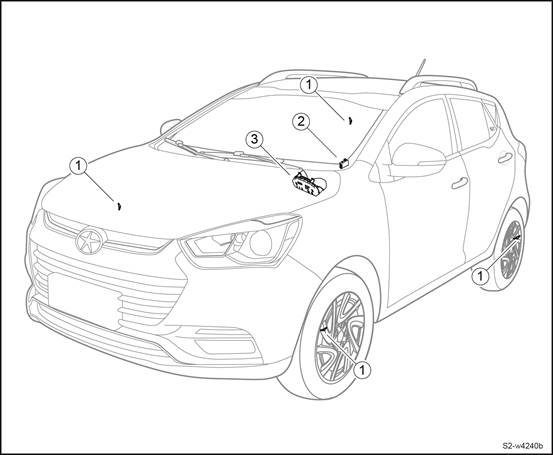

Components location:

































































               1. Tire Pressure Monitoring Sensor 2. Tire Pressure Monitoring Controller 3. Combination Instrument





(2) the working principle





Combination Instrument

Vehicle speed

Tire pressure warning lamp

The system fault light

Controller

sensor

sensor

sensor

Description: 433.92Hz RF Signal

sensor

GND

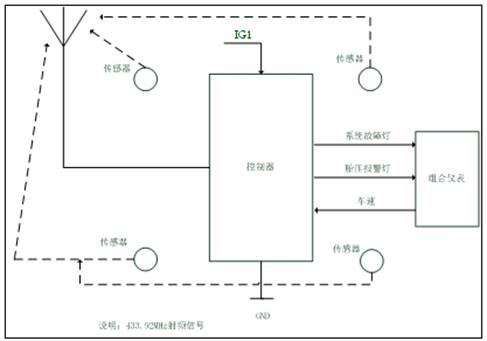

                            Tire pressure detection system schematic





 (III) Definition of System Interface Definition

1. Check if the power supply of the tire pressure monitoring system controller is normal (9V ~ 16V).

2. The terminal of the tire pressure monitoring system control module is defined as follows:

                   Controller terminal definition table

Tire pressure monitoring controller	Connector definition			Note
	1	IG1	＜1A	9-16V
	2	/	/	/
	3	/	/	/
	4	/	/	/
	5	System fault	＜50mA
	6	Tire pressure warning	＜50mA
	7	/
	8	/
	9	Ground	＜1A
	10	Vehicle speed	＜10mA	OC door input
	11	/
	12	/
	13	/
	14	/
	15	/
	16	/



(4) maintenance precautions



The TPMS system is the tire pressure monitoring auxiliary system. The signal transmission is completed by the high-frequency signal. When the high-frequency signal is interfered by the same frequency electromagnetic field and interfered with for a long time, it will send a system fault alarm. When the car is away from the strong magnetic field, alarm status will be automatically lifted, it is normal

Driving on a bumpy road, the vehicle turns, and the tires are stressed differently. As a result, the tire pressure is too high or too low during this period. Sometimes the system may occasionally get an alarm and travels to a flat and straight road. If the pressure is normal, it will be automatically released alarm, it is normal.

After a long time of parking, the tire pressure is normal and there is no obvious change. No sensor data has been received for 20 consecutive minutes. The TPMS lamp is on. After the vehicle is running, the sensor starts transmitting data and the TPMS lamp point goes out. This is normal.



(2). the fault diagnosis



(1) Troubleshooting Table



Number	faults phenomena	Cause Analysis	Solutions
1	The ignition switch is ON, the tire pressure warning indicator and the TPMS indicator light up at the same time and will not turn off after 2s.	The original receiver of the vehicle is not learning binding.	To the 4S shop, professionals are required to use hand-held learning tools to reacquire all tire sensor IDs and bind the receiver controller.
		The acceptance controller has been replaced and the receiving controller has not been learned to bind.
2	Tire pressure warning light flashes	During the driving process, tires were damaged by punctures, splits, etc., and the tire pressure rapidly decreased.	You must stop as soon as possible to check all tires and air pressure.
		While parking (ignition switch ON/START), deflate the tire.	After the air release is stopped or inflated, the alarm will be automatically released.
3	Tire Pressure Alarm Indicator	During stop (ignition switch ON/START), the tire is deflated, causing the air pressure to be too low.	Inflate the tire to the correct air pressure (tire pressure is listed on the tire pressure label).
		During parking (ignition switch ON/START), the tire is inflated and the air pressure is too high.	Deflate the tire to the correct pressure value.
		When driving on bumpy roads/turning vehicles, the tires are subjected to different forces, causing the tire pressure to be too high or too low during this period.	Drive to a flat/straight road surface and if the pressure is normal, the alarm will be automatically canceled.
		Insufficient tire pressure was detected during driving (the tire was not inflated for a long time / leaked due to tire damage).	You must stop as soon as possible to check all tires and air pressure.
		You must stop as soon as possible to check all tires and air pressure. The vehicle travels at high speed and overload, causing tires to overheat.	Slow down and do not overload.
		During running, the air pressure is insufficient and the friction increases, causing the tire to overheat.	You must stop as soon as possible to check all tires and air pressure.



Serial No.	faults phenomena	Cause Analysis	Solutions
4	TPMS indicator lamp normally on	One or more tire pressure sensors have battery levels below a certain value.	Return the sensor to the 4S shop in time and re-learn the binding.	See Tire Pressure Monitoring System TPMS indicator lamp normally on
		One of the four tires does not have a tire pressure sensor installed in one or both tires.	Install the correct sensor in the 4S shop and relearn the binding.
		One or two of the four tires are mounted incorrectly (ie, the sensor ID does not match the receiving controller ID).	Install the correct tire in the 4S shop and relearn the binding.
		Of the four tires, the tire pressure sensor of one or two of the tires fails and data cannot be transmitted.	Change the sensor to the 4S shop and relearn the binding.
		The high-frequency receiving module of the receiving controller is damaged and has not received any sensor data for 20 consecutive minutes.	Check the receiving controller at the 4S shop. If you need to replace the receiving controller, you must re-learn the binding.
		The sensor IDs of all four tires and the receiving controller ID do not match and no valid sensor data was received for 20 consecutive minutes.	Re-learn the bindings at the 4S shop.
		When the vehicle is stopped for a long time, the tire pressure is normal and there is no obvious change. The sensor does not send data to the receiving controller, and no sensor data is received for 20 consecutive minutes.	It is a normal phenomenon. After the vehicle is running, the sensor starts transmitting data and the alarm state is automatically released.
		In the same frequency interference area (strong interference, continuous) traffic, such as airports, radio towers, etc., may cover the sensor signal.	After leaving the same frequency interference area, the alarm status will be automatically released.
		Receiver controller wire harness bad contact	Unplug the receiving controller and reconnect it
5	Ignition switch from OFF to ON, tire pressure alarm indicator does not light	Indicator light failure	To the 4S shop, ask a professional to check the meter. If the meter is damaged, the meter needs to be replaced.	See Wheel Tire Pressure Unsatisfactory Tire Pressure Alarm Indicator Light Off















(2) the fault diagnosis flow chart



The tire pressure monitoring system (TPMS) indicator light is on



Steps	Checking content	Solution	Decision specification	Next step
				Yes	No
1	Check the battery voltage	Use a multimeter to measure the battery voltage.	Standard value: 11 ~ 14V	Next step	Check battery or charging system
2	Check TPMS Control Unit Power Supply	Use a multimeter to measure the voltage between the TPMS control unit harness connector F17 terminal 2 and the body ground.	Standard value: 11 ~ 14V	Next step	Check fuse, repair or replace wiring harness
3	Check TPMS Control Unit Ground	Use a multimeter to measure the resistance between the F17 terminal 9 and the body ground.	Resistance standard value: less than 1Ω	Next step	Repair or replace wiring harness
4	Replace TPMS control unit	Disconnect the negative battery cable, replace the TPMS control unit, and re-learn to bind the tire pressure monitoring sensor.	Is the system normal?	The system is normal	Next step
5	Check combination meter power supply and grounding line	Check whether the combination meter power supply and grounding line are normal	Voltage standard value: 11~14V Resistance standard value: Less than 1Ω	Next step	Repair or replace wiring harness
6	Change combination instrument		Is the system normal?	The system is normal	Next step
7	Replace Tire pressure monitoring controller	Replace Tire pressure monitoring controller Relearn the binding of tire pressure monitoring sensor	Is the system normal?	The system is normal



Tire pressure warning indicator does not light when car tire pressure is seriously insufficient



Steps	Checking content	Solution	Decision specification	Next step
				Yes	No
1	Check the battery voltage	Use a multimeter to measure the battery voltage.	Standard value: 11 ~ 14V	Next step	Check battery or charging system
2	Check the wiring harness between the combination meter and the TPMS control module	Disconnect TPMS control module harness connector F17 and combination meter harness connector M07, measure TPMS control module harness connector F17 terminal 6 and instrument cluster harness connector M07 terminal Resistance between 1	Resistance standard value: less than 1Ω	Next step	Repair or replace wiring harness
3	Check TPMS Control Unit Power Supply	Use a multimeter to measure the voltage between the TPMS control unit harness connector F17 terminal 2 and the body ground.	Standard value: 11 ~ 14V	Next step	Check fuse, repair or replace wiring harness
4	Check TPMS Control Unit Ground	Use a multimeter to measure the resistance between the F17 terminal 9 and the body ground.	Resistance standard value: less than 1Ω	Next step	Repair or replace wiring harness
5	Replace TPMS control unit	Disconnect the negative battery cable, replace the TPMS control unit, and re-learn to bind the tire pressure monitoring sensor.	Is the system normal?	The system is normal	Next step
6	Check combination meter power supply and grounding line	Check whether the combination meter power supply and grounding line are normal	Voltage standard value: 11~14V Resistance standard value: Less than 1Ω	Next step	Repair or replace wiring harness
7	Change combination instrument		Is the system normal?	The system is normal	Next step
8	Replace Tire pressure monitoring controller	Replace Tire pressure monitoring controller Relearn the binding of tire pressure monitoring sensor	Is the system normal?	The system is normal



3. Tire pressure monitoring controller



(1) Disassembly



1  Open the engine compartment cover.

2  Disconnect the negative harness of the battery refer to the

         disconnection and connection of the battery

3. Dismantle the sub instrument panel house refer to sub

         instrument panel

7.Disassemble the tire pressure monitoring controller

1). Disconnect the tire pressure monitoring controller harness connector.

2). Remove the 2 tire pressure monitoring controller fixing nuts and take off the tire pressure monitoring controller.













(2) Installation



1. Install tire pressure monitoring controller

1). Install the tire pressure monitoring controller fixing nut.

2). Connect the tire pressure monitoring controller harness connection.

         Install sub-dashboard body assembly

3. Connect the battery negative cable.

Close the engine compartment cover



4. Tire pressure monitoring controller



(1) Disassembly



1  Open the engine compartment cover.

2  Disconnect the negative harness of the battery refer to the    disconnection and connection of the battery

3 disassemble the wheel, please refer to the chapter “wheel”.

4.Disassemble the tire pressure monitoring controller

1). Remove the tire and remove the tire pressure monitoring sensor fixing nut from the outside of the rim.

            2). Remove the tire pressure monitoring sensor from the inside of the rim.

















(2) Installation



1. Install tire pressure monitoring controller

1). Install the tire pressure monitoring sensor from inside the rim.



























2). Install the tire and tighten the tire pressure monitoring sensor fixing nut from the outside of the rim.

△Caution The sealing rubber of the sensor is tightly fitted with the rim to ensure the tightness of the tire.

        2. Install the wheel

3. Connect the battery negative cable.

Close the engine compartment cover

PEPS system

1.Overview of the system

Passive Entry & Passive Start (PEPS) means a keyless entry and keyless entry system that uses state-of-the-art RFID radio frequency technology and a vehicle identification code recognition system to provide a comfortable and completely new driving experience with user-friendly convenience.

The PEPS system consists of the following units: keyless entry electronic control unit, low-frequency antenna in the car, spare antenna, integrated entry sensor in the door handle, pushbutton ignition switch, keyless access to electronic control unit bracket, low frequency antenna bracket, Antenna, electronic steering column lock, electronic lock ring, five key smart key, alarm (instrument display interface prompt). The detailed composition is as follows:

Spare parts name	Quantity	Remark
Keyless entry to the electronic control unit	1	PEPS system controller, hereinafter referred to as PEPS controller
Car low-frequency antenna	2	Search function for smart key in car
Spare antenna	1	For smart key emergency start when no electricity, smart key to match the learning
Integrated into the door handle sensor	2	Low-frequency search for the smart key outside the car
Push-button ignition switch	1	Used to start and stop the vehicle and power status switch
Keyless entry to electronic control unit bracket	1	Used for keyless entry into the electronic control unit
Rear low-frequency antenna bracket	1	Used for fixing the rear-low-frequency antenna
Electronic steering column lock	1	Acting on the steering column lock mechanism
Electronic lock snap ring	1	Used for fixing the electronic steering column lock



2 .Component mounting position

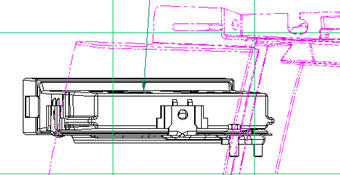

(1. Keyless access to the electronic control unit and bracket position

Located on the right side of the instrument panel beam

(2. Car low-frequency antenna

The front low-frequency antenna is located in the middle of the instrument panel beam, the low-frequency antenna is located in the rear seat, and the tailgate low-frequency antenna is located in the rear guard bar.

(3. Spare antenna

Spare antenna

Deputy instrument panel trim cup holder

Located on the bottom of the instrument gauge cup holder

(4.  Integrated sensor into the door handle

Located in the left front door handle

(5. PEPS button

PEPS button

Steering column

Electronic steering column lock

Electronic steering column lock snap ring

Located on the direction column

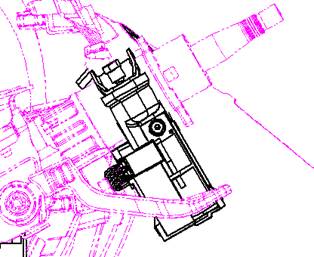

(6. Electronic steering column lock and snap ring





Located on the direction column

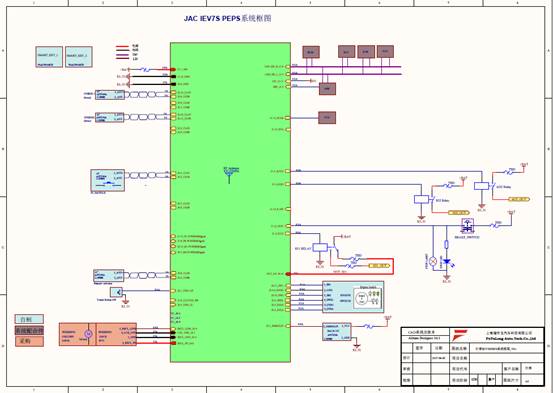

3.System principle diagram















4.Component inspection

Connector terminal definition:





























V. Replacement of parts

5.1 PEPS Controller Removal.

a) Disconnect the battery negative;

b) Remove the dashboard panel;

c) Disconnect the connector of the PEPS controller;

d) Remove the bolts that secure the keyless entry to the electronic control unit bracket;

e) Remove the PEPS controller and its holder from the tube beam.

5.2 In-Car Low Frequency Antenna Removal

5.2.1 Front Low Frequency Antenna Removal

a) Disconnect the negative pole of the battery;

b) Remove the dashboard panel;

c) disconnect the front low frequency antenna connector;

d) Remove the low frequency antenna from the gimbal beam support.



5.2.2 Low Frequency Antenna Removal

a) Disconnect the negative pole of the battery;

b) Sub-dash panel rear panel;

c) disconnect the low frequency antenna connector;

d) Remove the anti-offset LF antenna from the stand.



5.2.3 Rear bumper LF antenna removal

a) Disconnect the negative pole of the battery;

b) Remove the rear bumper;

c) After disconnecting the low frequency antenna connector;

d) Remove the low frequency antenna from the rear impact beam

Rear anti-collision beam

Rear vehicle low frequency antenna

5.3 Backup Antenna Removal

a) Disconnect the negative pole of the battery;

b) remove the instrument panel;

c) disconnect the backup antenna connector;

d) Remove the backup antenna from the bottom of the storage box.

Spare antenna

Deputy instrument panel trim cup holder

5.4 Integrated Inlet Sensor Removal in Door Handle

a) Disconnect the negative pole of the battery;

b) Remove the inner door panel of the front door;

c) Remove the front door handle;

d) Disconnect the integrated sensor access connector in the door handle;

e) Take the integrated entry sensor in the door handle out of the door handle.

5.5 PEPS start switch disassembly

a) Disconnect the battery negative;

b) Remove the instrument panel shell;

c) Disconnect a key to activate the switch connector;

d) Remove the one-touch switch from the panel.

PEPS button

Steering column

Electronic steering column lock

Electronic steering column lock snap ring



5.6 Installation of Parts

Follow the reverse procedure for disassembly.

6.Maintenance Precautions



Instrument prompts and maintenance methods



Maintenance Spectial Precautions



Precautions:

Do not reset the EMS, PEPS at the same time, otherwise, the key will not be used and the module will need to be replaced

When the ICM indicates that the vehicle can also be started "N" times, after the fault problem is locked, the diagnostic instrument is used to perform the process of resetting the number of starts. (If the vehicle requires power-on check, you can directly execute the PEPS reset start times. At this time, you can solve the start-up problem, but be sure to find out the cause of the decrease in the number of start-ups. If you do not find out the reason for the delivery, the car will still have this problem again. .)



7.fault code table



Fault code meaning and how to eliminate it
