● Technicians using a medical electric device such as pacemaker must never perform operation on the vehicle, as magnetic field can affect the device function by approaching to such parts.

Normal charge precaution

Warning：

● If a technician uses a medical electric device such as an implantable cardiac pacemaker or an implantable cardioverter defibrillator, the possible effects on the devices must be checked with the device manufacturer before starting the charge operation.

● As radiated electromagnetic wave generated by on board charger at normal charge operation may affect medical electric devices, a technician using a medical electric device such as implantable cardiac pacemaker or an implantable cardioverter defibrillator must not enter the vehicle compartment (including trunk) during normal charge operation.

Precaution at telematics system operation

● If a technician uses implantable cardiac pacemaker or implantable cardioverter defibrillator (ICD), avoid the device implanted part from Communication device.

● The electromagnetic wave of TCU might affect the function of the implantable cardiac pacemaker or the implantable cardioverter defibrillator (ICD), when using the service, etc.

● If a technician uses other medical electric devices than implantable cardiac pacemaker or implantable cardioverter defibrillator (ICD), the electromagnetic wave of TCU might affect the function of the device. The possible effects on the devices must be checked with the device manufacturer before TCU use.

Key Part Check before Maintenance and Repair

Check the high-voltage system, and ensure the high-voltage system is powered off before starting the maintenance work, and disconnect the battery switch.

Cautions：

If the timer air conditioner or timer charge is set, the high voltage system starts automatically even when the power switch is in OFF state.

Precautions for SRS "Air Bag" and "seat belt pre-tensioner

Supplemental Restraint System (SRS) "Air Bag" and "seat belt pre-tensioner" are used on the front seat belts, which can help to reduce the dangers or serious injury of the driver and the front passenger in certain type of collisions. The relevant information of safe usage of the system are included in the SRS and Safety Belt Section of the Service Manual.

Warning:

In order to prevent accidents, please follow the below points：

● Avoid the deactivation of SRS. Its failure will increase the personal injury caused by the airbag collision in the major collision accident. All the repairs must be done by the authorized dealer of JAC.

● Improper repair, including wrong removal and installation of SRS system, will make the system unable to activate and cause personal injury. Regarding the spiral cable and airbag modules, please refer to "SRS AIR BAG".

● Unless it is allowed in Service Manual, please do not use the electronic test equipment on the relevant circuit of SRS. The harness of SRS uses yellow or orange harness or harness connector, which can be easily recognized.

Precautions for using power tools (air or electric power) and hammers.

● When the power switch is turned on, do not use the pneumatic or electric tools or hammer to hammer the surrounding areas of the airbag diagnostic sensor or airbag system sensors. Strong vibration may activate the sensors and unfold the air bag, which will cause serious injuries.

● When using the pneumatic or electric tools or hammer, please switch off the power always, unplug the 12V lead-acid battery pile head, and wait at least 1 minute and then repair.

Precautions for removing 12V battery

Before removing the 12V battery, please turn the power switch to the ON position, then turn to the OFF position.

Tips：

● When the power switch is on OFF position, the automatic charging control system of the battery may start.

● When turning the power switch from ON position to OFF position, the automatic charging control system of the battery will not start.

Common Precautions

● Before the serving, which is not need to use the power supply: turn the power switch to LOCK position, disconnect the 12V storage battery negative terminal.

● After disconnecting 12V storage battery negative terminal, the storage memory of radio and other control devices will be deleted.

● Replace new oil seal. gasket. seal ring. O-ring. lock gasket. cotter pin. self-locking nut and other components.

● Place the removed components according to the assembly-oriented position and order.

● If necessary, use authorized binder. sealant or equivalent product.

● In order to repair the vehicle safely and efficiently, right use of hand tools. power tools(only for removal) and special tools is necessary.

● Before Servicing：

Use suitable cover to cover the wheel fender. interior and carpet. Attention, do not use the key. fastener or the like to scratch the paintwork.

Component Position

1. bass loudspeaker + high tone loudspeaker	2. multimedia interface assembly	3. multi-media interface cover plate
4. MP5 navigation host assembly	5. antenna transition line	6. shark fin antenna assembly

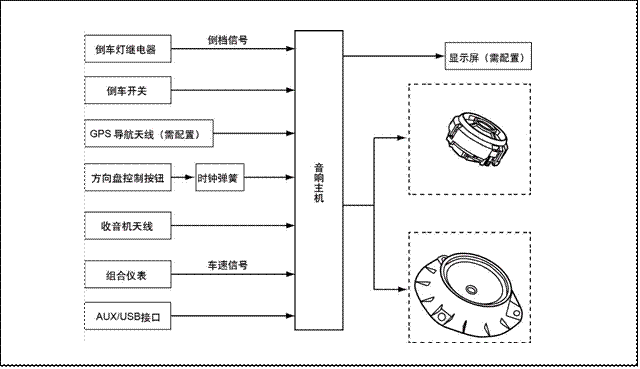

Working Principle

Malfunction Diagnosis

List of Malfunction Diagnosis

1. Check the after-sales installation device that may have influence on system operation.

2. Check easily accessible or visible system component to find out whether there is obvious damage or situation that may lead to malfunction.

3. For all the out-of service malfunctions of loudspeaker, conduct key inspection of the positions that are easily short-to-ground in the loudspeaker circuit, which will be helpful to troubleshoot malfunctions rapidly.

4. For the single loudspeaker out of service, the reason may be that client makes use of sound track screening function by accident, which makes single sound track out of service. This kind of malfunction does not belong to sound system malfunction, please refer to sound system instruction in user manual.

No	Malfunction Phenomenon	Analysis On Malfunction Reason	Countermeasures	Remark
1	No display of LCD screen	Disconnection of power supply switch and starting switch	Access Switch
		Loose connecting wire	Reconnection
		Fuse blowout	Replace new protective tube
2	Sound can’t be played	System stays in mute state	Press MUTE button and turn off mute
		Loose connecting wire of loudspeaker	Reconnection
		Loudspeaker damage	Replace new loudspeaker
3	MP5 Won’t Turn ON	Power Supply Fuse Malfunction	Replace Fuse
		Radio power supply or grounding wire works	Repair Relevant Harness
		MP5 Malfunction	Replace MP5
4	Radio Can’t Get Stations	Radio Antenna Amplifier Malfunction	Replace MP5 Amplifier
		MP5 Malfunction	Replace MP5
		Radio Printed Antenna Malfunction	Replace Printed Antenna
5	No Navigation Signal	Navigation Antenna Malfunction	Replace Navigation Antenna
		Obscured Property above vehicle	Move vehicle to open field

Removal and Installation

Removal and Installation of MP5

1. Open front compartment cover

2. Disconnect battery negative cable. Refer to Disconnection and Connection of Battery Cable

3. Remove decorative plate assembly on the right side of center. Refer to Decorative Plate Assembly On Right Side of Center

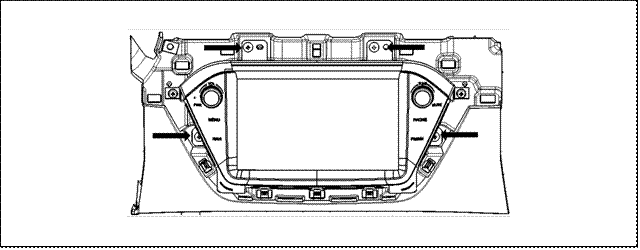

4. Removal MP5 panel assembly. Refer to MP5 Panel Assembly

5. Remove MP5 assembly

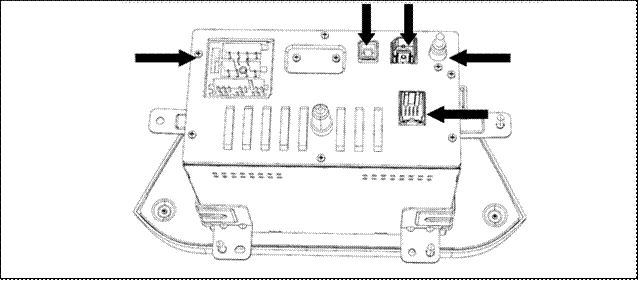

1). Remove four mounting bolts Q2734819 of instrument panel connecting with MP5+GPS host.

2). Remove all the connectors after removing MP5+GPS hosts.

3). Take down MP5+GPS host.

Installation

Install in the reverse order of removal.

Cautions：

● The tightening torque of installing four mounting bolts of MP5+GPS host is 4N·m～5N·m.

Removal and Installation of Noise Reduction Module

Removal

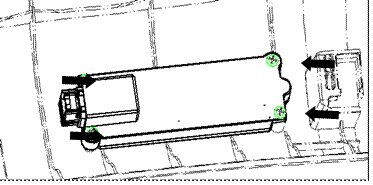

Remove four mounting bolts 12431-03123 of noise reduction module connecting with front ceiling lamp.

Inspection after removal

Check noise reduction module for damage or crack. If does, please replace it.

Installation

Install in the reverse order of removal

● The tightening torque of installing four mounting bolts of noise reduction module is 4N·m～5N·m.

Removal and Installation of Multimedia Connector Assembly

Removal

1. Open front compartment cover

2. Disconnect battery negative cable. Refer to Disconnection and Connection of Battery Cable

3. Remove decorative plate assembly on the right side of center. Refer to Decorative Plate Assembly On the Right Side of Center

4. Remove MP5 panel assembly. Refer to MP5 Panel Assembly

5. Remove MP5 assembly. Refer to MP5 assembly

6. Remove front extension panel assembly. Refer to Front Extension Panel Assembly

7. Remove cup saucer cover assembly. Refer to Cup Saucer Cover Assembly

8. Remove front storage box assembly. Refer to Front Storage Box Assembly

9. Remove vice-instrument assembly. Refer to Vice-Instrument Assembly

10. Remove multimedia connector assembly

1). Disconnect harness clamp of multimedia connector assembly.

2). Plug out multimedia connector assembly.

Installation

Install in the reverse order of removal.

Removal and Installation of Multimedia Connector Cover

Removal

1. Open front compartment cover

2. Disconnect battery negative cable. Refer to Disconnection and Connection of Battery Cable

3. Remove multimedia connector cover

1). Pry off multimedia connector cover.

2). Disconnect harness connector of multimedia connector cover.

3). Take down multimedia cover plate.

Installation

Install in the reverse order of removal.

Removal and Installation of Antenna Device

1. Removal of GPS Antenna

1 Remove one mounting bolt Q2714813 of GPS antenna connecting with instrument panel.

Inspection after Removal

1 Check GPS antenna support for damage or crack, if does, please replace it.

Installation

Install in the reverse order of removal.

Cautions：

● Tightening torque of installing the bolt of GPS antenna is 2.5N·m～3N·m.

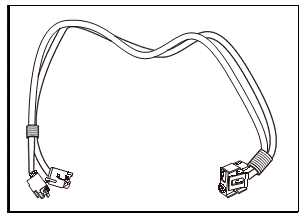

2. Transition Cable of Antenna

Removal

1. Open front compartment cover

2. Disconnect battery negative cable

3. Remove decorative plate on the right side of center. Refer to Decorative Plate ON the Right Side of Center

4. Remove MP5 panel assembly. Refer to MP5 Panel Assembly

5. Remove MP5 assembly. Refer to MP5 assembly

6. Remove glove box assembly. Refer to Glove Box Assembly

7. Remove decorative plate assembly (right) on column A. Refer to Decorative Plate Assembly On Column A

8. Remove threshold backplate (right) assembly of front door. Refer to Threshold Backplate Assembly of Front Door

9. Remove threshold backplate (right) assembly of rear door. Refer to Threshold Backplate Assembly of Rear Door

10. Remove downward decorative plate assembly (right) of column B. Refer to Downward Decorative Plate Assembly of Column B.

11. Remove upward decorative plate assembly (right) of column B. Refer to Upward Decorative Plate Assembly of Column B.

12. Remove rear seat cushion assembly. Refer to Rear Seat Cushion Assembly

13. Remove rear seat backrest assembly. Refer to Rear Seat Assembly

14. Remove fixed support （right） assembly below rear seat backrest. Refer to Downward Decorative Plate Assembly of Column C

15. Remove downward decorative assembly (right) of column C. Refer to Downward Decorative Assembly of Column C

16. Remove upward decorative assembly (right) of column C. Refer to Upward Decorative Assembly of Column C

17. Remove sun louver assembly (left. right). Refer to Sun Louver Assembly

18. Remove ceiling armrest assembly (right front. left rear. right rear). Refer to Ceiling Armrest Assembly

19. Remove front ceiling lamp assembly. Refer to Front Ceiling Lamp Assembly

20. Remove ceiling assembly. Refer to Ceiling Assembly

21. Transition Cable Rearpart of Antenna

1). Disconnect butt joint of transition cable forepart and rearpart of antenna.

2). Disconnect one fixed clip between transition cable rearpart of antenna and instrument tubular beam, take down transition cable rearpart of antenna.

22. Remove Transition Cable Forepart of Antenna

1). Disconnect connector between transition cable forepart of antenna （amplifier）and main harness.

2). Disconnect harness connector ② between transition cable forepart of antenna (amplifier) and rod-type antenna assembly.

3). Disconnect butt joint ① between transition cable forepart of antenna (amplifier) and rod-type antenna assembly.

S2-0603-7792-HXH-1

4). Plug out fixed clip between transition cable forepart of antenna and vehicle body, take down transition cable forepart of antenna.

Clip：

Installation

Install in the reverse order of removal.

Removal and Installation of Antenna Assembly

Removal

1. Open front compartment cover

2. Disconnect battery negative cable. Refer to Disconnection and Connection of Battery Cable

3. Remove upward decorative plate assembly (right) of column A. Refer to Upward Decorative Plate Assembly of Column A

4. Remove threshold backplate assembly (right) of front door. Refer to Threshold Backplate Assembly of Front Door

5. Remove threshold backplate assembly (right) of rear door. Refer to Threshold Backplate Assembly of Rear Door

6. Remove downward decorative plate assembly (right) of column B. Refer to Downward Decorative Plate Assembly of Column B

7. Remove upward decorative plate assembly (right) of column B. Refer to Upward Decorative Plate Assembly of Column B

8. Remove rear seat cushion assembly. Refer to Rear Seat Assembly

9. Remove rear seat backrest assembly. Refer to Rear Seat Assembly

10. Remove fixed support assembly (right) below rear seat backrest. Refer to Downward Decorative Plate Assembly of Column C

11. Remove downward decorative plate assembly (right) of column C. Refer to Downward Decorative Plate Assembly of Column C

12. Remove upward decorative plate assembly (right) of column C. Refer to Upward Decorative Plate Assembly of Column C

13. Remove sun louver assembly (left. right). Refer to Sun Louver Assembly

14. Remove ceiling armrest assembly (right front. left rear. right rear). Refer to Ceiling Armrest Assembly

15. Remove front ceiling lamp assembly. Refer to Front Ceiling Lamp Assembly

16. Remove ceiling assembly. Refer to ceiling assembly

17. Remove Rod-Type Antenna Assembly

1). Disconnect harness connector ② between rod-type antenna assembly and transition cable forepart （amplifier）of antenna.

2). Disconnect butt joint ① between rod-type antenna assembly and transition cable forepart of antenna.

3). Remove one fixed bolt of rod-type antenna assembly.

Draw out rod-type antenna assembly.

S2-0603-7792-HXH

Installation

Install in the reverse order of removal.

Removal and Installation of Audio Speaker Device

Removal

1. Plug out woofer connector firstly, then remove three mounting bolts Q2714213 of woofer connecting with door panel.

2. Plug out tweeter connector firstly, then remove two mounting bolts 12431-03129 connecting with trim panel of high pitched A column.

Inspection after removal

1. Check woofer and tweeter supports for crack or damage. If does, please replace it.

2. Check woofer and tweeterl connectors for crack or damage. If does, please replace it.

Installation

Install in the reverse order of removal.

Cautions：

● Tightening torque of installing woofer and tweeter bolts is 5N·m～6N·m.
