Cautions for electric technicians using medical electrics
Forbidden operation
Warning:
● There are strong magnetic components in the vehicle
● If technician use medical electrics,e.g electronic pacemakers, which couldn’t be operated in the vehicle ,otherwise,the function of electrics may be effected by strong magnetic components.
Cautions for normal charge
Warning:
● If technician use the medical electrics like pacemakers, cardiovascular, in addition to the top, the machine only could be used after the function of machine checked and confirmed before normally operation.
● In the normal charging operation, Medical electrics may be affected by electromagnetic wave. When Technicians use the medical electrics like pacemakers, cardiovascular, in addition to the top etc, it is not allowed to enter into crew capsule (including luggage).
Cautions for communication equipment
● If technicians use the medical electrics like pacemakers, cardiovascular, in addition to the top etc, please keep enough distance with the communication equipment.
● Remote intelligent terminal of electromagnetic waves may affect the function of the medical electrics like pacemakers, cardiovascular, in addition to the top etc.
● If technicians use the medical electrics like pacemakers, cardiovascular, in addition to the top etc, remote intelligent terminal of electromagnetic waves may affect the function of the medical electrics. It is needed to let the manufacturer of the medial electrics confirm that the possible affection to medical electric equipment when using remote intelligent terminal .
Keypoint checking before maintenance
High pressure system can be run automatically, it is need to confirm that remote air conditioning and recharged regularly are not set before maintenance.
Cautions：
● If set remote air-conditioner or charged regularly, even though the switch is closed, high pressure system can be run automatically.
Cautions for "safety airbag"and"safety belt preloaded"of auxiliary constraint system
The combination use of "safety airbag"and"safety belt preloaded"of auxiliary constraint system and front seat belt could decrease the damage to driver and passengers when collision. The auxiliary constraint system include seat belt, airbag for driver, airbag for co-driver. The detailed information for auxiliary constraint system could refers to the sections of “airbag system” and “seat belt”
Warning:
To avoid unexpected accident, we need to obey the following:
● To avoid the auxiliary constraint system invalid, all the maintenance only could be operated by JAC authorized distributors because the risk of injury to people will be increased after invalid.
● Non-standard auxiliary constraint system of maintenance including non-standard disassembly and installation, may result in auxiliary constraint system accident triggered, causing personal injury accidents. About remove the airbag module method, please see "airbag system" section.
● In addition to the maintenance instructions in the manual operation, do not use electrical test equipment to test any circuit of auxiliary constraint system. Auxiliary constraint system of connectors and wiring harness use yellow or orange color.
Cautions when use electrical tools (pneumatic or electric)and hammer
● when electric switch in the "ON" block, near the airbag diagnostic sensors or other sensor, do not use power tools or hammer to operate sensor parts area. Severe vibration may activate the sensor, some airbags, causing serious damage.
● When using power tools or hammer, put the keys in the "LOCK" block, unplug the 12 v lead-acid battery cathode, waiting at least 1 minute, then for checking and maintenance.
Cautions for removing 12V battery
Turn the key to “on”,then to “lock” before remove 12v battery
Tip:
● Even if the key in the "LOCK" and the 12 v battery charging function may start automatically.
● After turn the key to "ON" --> "LOCK", 12 v battery automatic charging will not start.
Cautions for checking and maintenance suspension system
● It shall thoroughly check before repair or replacement parts.
● Check fastening parts torque after installation.
|
Tool |
Diagram |
Instruction |
|
Power tool |
|
Install and remove bolts and nuts |
100

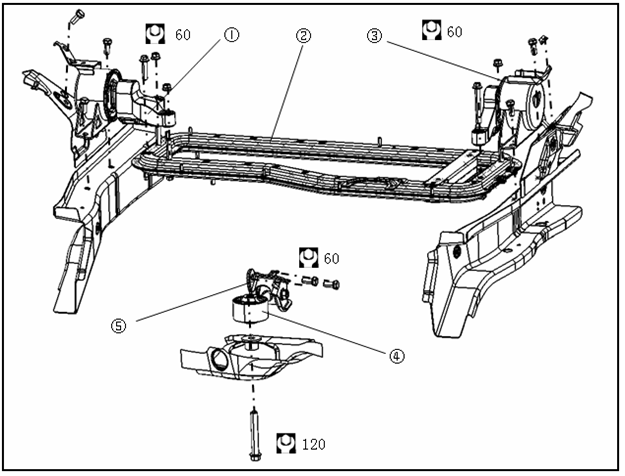

车辆前进方向
|
2 power train beam |
|
|
3 soft mat assembly of right suspension |
4 rear suspension bracket |
|
5 soft mat of rear suspension |
|
N·m
Soft mat and bracket of rear suspension
|
1 Remove connecting bolts between rear Suspension bracket and reducer. |
|
|
2 Remove connecting bolts between rear suspensionSoft mat and front vice frame |
|
|
3 Take out bracket and soft mat of rear suspension |
|
|
4 Remove the connecting bolts between rear suspension bracket and soft mat, make the soft mat and bracket separate. |
|
Cautions:
● When remove, avoid knock against scratches and damage the powertrain components.
Check after remove
1 check whether there is any deformation, crack or damage on the rear suspension bracket. If there is, please replace.
2 check whether there is any deformation, crack or damage on the metal parts of rear suspension soft mat . If there is, please replace.
3 check whether there is any crack, degumming or aging on the rubber parts of rear suspension soft mat. If there is, please replace.
1 install connecting bolts between bracket and soft mat of rear suspension.
● Tighten torque:90～110N·m
2 install connection bolts between rear suspension soft mat and front vice frame.
● Tighten torque:110～130N·m
3 install connecting bolts between rear suspension bracket and reducer.
● Tighten torque:50～60N·m
Cautions:
● All of the bolts shall be pre-tightened,then tighten to the specified torque.
Left and right suspension soft mat assembly
1 Lift up the vehicle and use the tool to support power train.
2 Remove the bracket and soft mat of rear suspension
3 Remove the connecting bolts and nuts between left and right suspension soft mat assembly and power train supporting beam.
4 Remove the connecting bolts between left and right suspension soft mat and body.
5 Remove left and right suspension soft mat assembly.
Cautions:
● When removing, avoid power train shaking and drop which resulted in injury to people.
● When removing, avoid knock against scratches and damage the power train components.
Check after remove
1 Check whether there is deformation, crack or damage on the metal parts of left and right suspension soft mat assemble. If yes, please replace.
2 Check whether there is crack ,degumming or aging on the rubber parts of left and right suspension soft mat assemble. If yes, please replace.
1 Install the connecting bolts between let and right suspension soft mat assembly and body.
● Tighten toque:50～70N·m
2 power train supporting beam.
● Tighten torque:50～60N·m
3 Install bracket and soft mat of rear suspension
Cautions:
● All of the connecting bolts shall be pre-tightened,then tighten to the specified torque.
1 Remove connection pipe between the power train assembly components and radiator assembly , please see the "cooling system -cooling water pipe".
2 Unplug the high and low voltage wiring harness connector which is connected with power train parts .
3 Lifting the vehicle, use tools to support the power train assembly.
4 Remove the left front driving shaft assembly, right front driving shaft assembly, please see the "front axle - front driving shaft.
5 Remove left and right suspension soft mat assembly,bracket and soft mat of rear suspension. separate the power from the car body.
6 Remove the motor controller and motor controller bracket, remove motor controller, please refer to "electric tumble sub-manual- controller".
7 Remove the high pressure connection box and charger, please see the "charging system - charging machine".
8 Remove the vacuum pump, please see the "braking system - vacuum booster system".
9 Remove the front low voltage wire clamp clasp, remove the front low voltage wiring harness.
10 Remove the air conditioning compressor and air conditioning compressor bracket, please see the "air conditioning system - compressor".
11 Remove the cooling water pump and cooling water pump bracket, please see the "cooling system - cooling water pump".
12 Remove the fixed nut of motor and reducer and powertrain beam; please see the "electric tumble sub-manual - motor", "electric tumble sub-manual - reducer.
13 Take out power train assembly beam
Cautions:
● When removing, avoid power train shaking and drop which resulted in injury to people.
● When removing, avoid knock against scratches and damage the power train assembly components.
Check after remove
1 Check whether there is deformation,crack other damage on the power train assembly beam,if there is, please replace.
2 Check whether there is deformation,crack other damage on the bolts,nuts,casing and welding bracket of the power train assembly beam. If there is, please replace.
Install in the opposite order of remove
Cautions:
● All of the connecting bolts shall be pre-tightened,then tighten to the specified torque.
